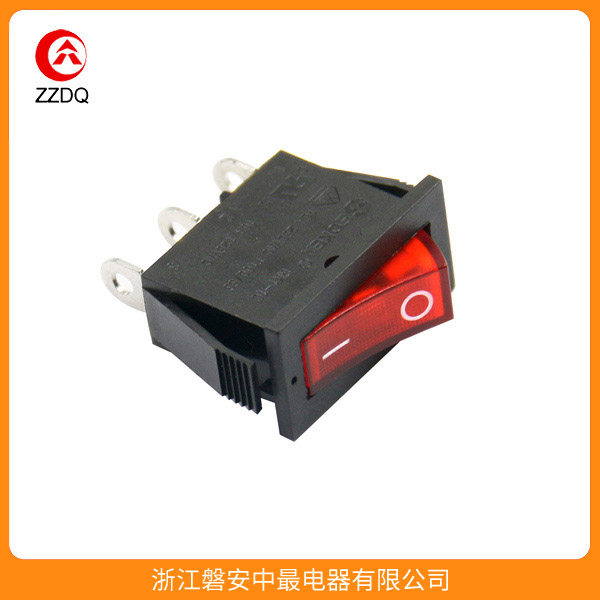

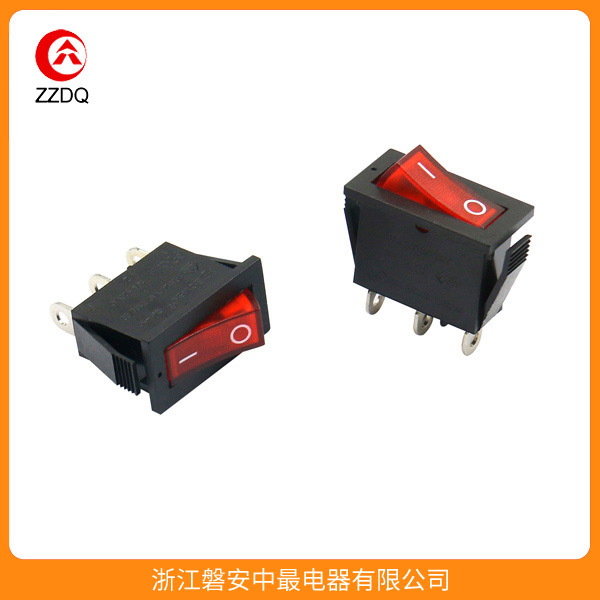

K3系列翹板開關

產品型號:

產品描述

Product Descriptions

安裝容易,插入即可扣住各式公用電源開關的開孔。
Snaps onto the same cutout as many common power switches.
多種顏色的上蓋及本體,還有多種樣式端子腳。
Various colors,bodies,tope covers,and terminals.

主要應用

Typical Application

馬達,電源供應器,發電機,變壓器,測試儀器,延長線,電動工具,不斷電供應器,運動器材,食物調理機。
Motors,power,Supplies,Generators,Transformers,Instrumentation,Power strips,Power tools,UPS,Health Equipments,Food Processor.

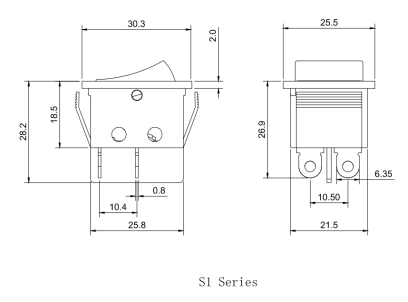

外觀尺寸圖

Out Dimensiongs


技術資料

Technical Datas

額定電流電壓(Current and Voltage Ratings)3A-16A at 125/250VAC;50VDC
接觸阻抗(Contact Resistance)≤80m
絕緣阻抗(Insulation Resistance)≥100m 500VDC
絕緣耐電壓(Dielectric withstanding Voltage)1500VAC at 50/60 Hz for 60 seconds
電氣壽命(Electrical Life)6000 cycles full rated current
使用溫度范圍(Operating temperature range)-10℃to+60℃
使用濕度(Ambient humidity used)≤85%RH
可焊性(Solder ability)260℃±5℃3±1S
